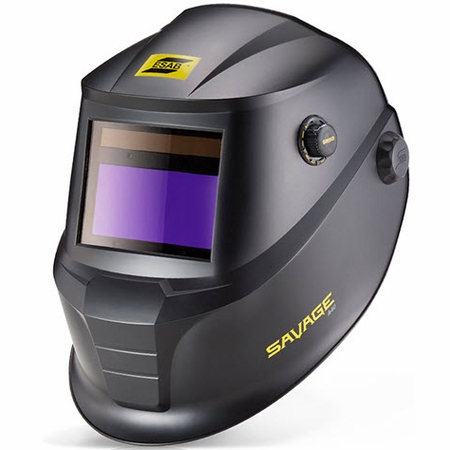

NEW! ESAB SAVAGE A40 - Professional automatic welding helmet!
The ESAB SAVAGE A40 helmet has been designed to meet the needs of a variety of welders, providing a high tech lightweight shell to protect from heat, sparks and spatter. Utilizing the latest ADF technology, the welding lens gives a high clarity of view with True Color, resulting in an excellent optical quality.
The SAVAGE A40 helmet provides ideal
functionality, performance and comfort to the
occasional welder, maintenance and construction
workers through to the professional welder.

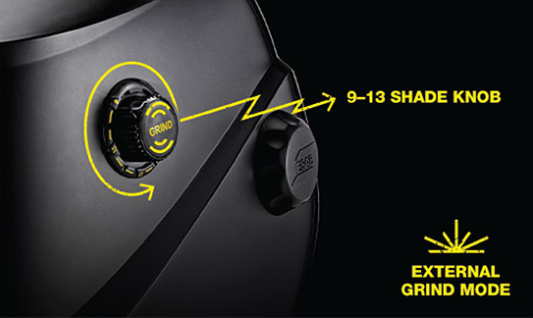

External shade adjustment between DIN 9 and DIN 13 and an optical class of 1/1/1/2. Delay and sensitivity can be adjusted from the inside
Four arc sensors for higher auto darkening response
Wider coverage and a larger viewing area of 3.93 x 1.96 in. (100 x 50 mm) that offers a wide field of vision and increased spatial awareness
Sensitivity control is an adaptable feature useful when welding low amp TIG for better reaction to darker arc light
Delay control enabling the welder to set how long the lens stays dark after the welding arc stops. Short delay helps get the job done faster during tack welding, while longer delay is useful for high amperage welding
Externally activated Grind Button. Shade 4 Grind Mode
True Color allowing for a brighter view and
enhanced colour definition

Welding Process
Oxy-Fuel Cutting
Plasma Cutting
Grinding
Welding, GMAW (MIG/MAG)
Welding, GTAW (TIG)
Welding, PAW -Plasma Arc Welding
Welding, SMAW/MMA (Stick)
ESAB SAVAGE A40
Specifications:
Cartridge Dimensions 4.33 x 3.54 x 0.3 in. (110 x 90 x 7.8 mm)
Viewing Area 3.93 x 1.96 in. (100 x 50 mm)
Lens Shade 9-13 Automatic
Power Supply Solar cell, no battery change. (1*CR2450 lithium). Alerts when low battery.
Sensors 4
Switch Time, from Light to Dark 0.1-0.9 s
Switch Time, at 23°C 0.07 ms
Classification 1/1/1/2
Standards CE EN379 and EN175, ANSI , CSA, AS/NZS
Weight 1.1 lbs. (500 g)
Ordering Information:
Savage A40 9-13 Black 0700000480
Savage A40 9-13 Yellow 0700000481

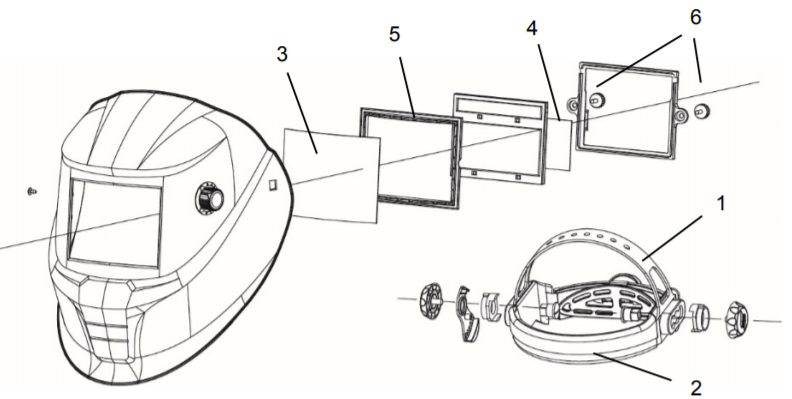

Wear and Spare Parts
1 Head Gear 0700000483
2 Sweat Band 0700000414
3 Front Cover Lens 0700000010
4 Inside Cover Lens 0700000482
5 ADF Cradle 0700000418
6 Lens Retainer with Screw 0700000419
Magnifying Lens +1.0 Diopter 0700000084
Magnifying Lens +1.5 Diopter 0700000085
Magnifying Lens +2.0 Diopter 0700000086
Magnifying Lens +2.5 Diopter 0700000087
Leather Chest Protection 0700000062
Leather Head/Neck Protection 0700000063
Proban Hood 0000593269
Download manual ESAB SAVAGE A40.pdf
Download the information leaflet ESAB SAVAGE A40 EN.pdf
