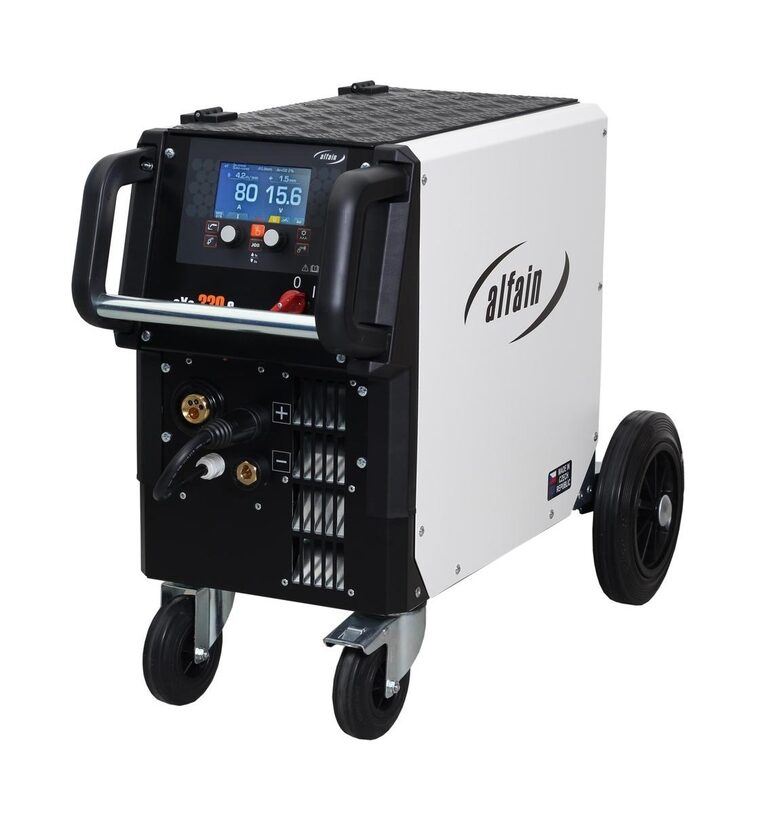

Welding machine ALFAIN aXe 330S GAS inverter for MIG/MAG welding.

Welding machine ALFAIN aXe 330S GAS inverter for MIG/MAG welding.

• Excellent welding properties in mixed gas and CO² environment;
• Welding of various metals and alloys (carbon and alloy steel, aluminum, etc.) with wire diameter 0.6 - 0.8 mm or 1.0 - 1.2 mm
• Constant voltage level support;
• Adjustable Burn Back;
• 4-wire feed rollers;
• Electronic ignition adjustment;
• Highest class of wire feeder - four-roller feed with large rollers and incremental encoder ensures safe and reliable wire feeding

Technical data

SVAROG 330S

MIG/MAG MMA method

Mains voltage V/Hz 3x400/50-60

Welding current range A/V MIG/MAG 30 - 320; MMA 20–300

Open circuit voltage U0 V 76

Mains protection A 16 @

Welding current (DC=100%) I2 A 210 200

Welding current (DC=60%) I2 A 250 240

Welding current (DC=x%) I2 A 35%=330 30%=250

Insulation class IP 23S

Standards EN IEC 60974-1, EN 60974-10 cl. A

Dimensions mm 474 x 911 x 670

Weight kg 49

Wire speed m/min 1.5 - 24.0

Spool diameter mm 300 (15-18kg)

Spool weight kg max 18

Included in the set:

VM0023 Grounding cable 3m 35-50 300A
