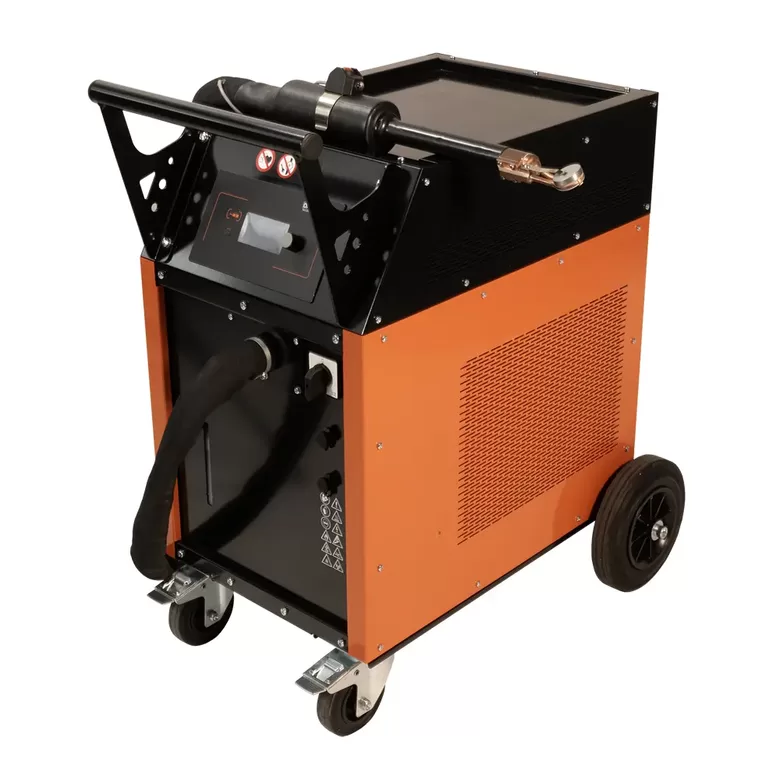

DAWELL CZ DHI-120F HD induction heater

DAWELL CZ DHI-120F HD is a high-powered mobile induction heater with a liquid-cooled inductor, designed mainly for pre- and post-weld straightening and other industrial applications. A lightweight applicator allows longer work and freedom of movement around the part, while a powerful cooling system ensures continuous operation.

Features
Power supply: 3×400 V
Power input: 10 kW
Current: 16 A
Frequency: 18–35 kHz
Safety class: 21
Applicator cable: 4 / 6 / 8 / 10 m
Dimensions: 54 × 81 × 71 cm
Weight: 68 kg

Functions and advantages
• Liquid-cooled inductor with high-efficiency pump.
• Continuous power control 20–100 % (CP mode).
• CP and CF modes, timer, factory reset function.
• Clear screen with parameter display, LED light, USB connection.
• Connector for remote control and temperature sensor.
• Supplied with circular focusing inductor and coolant.

Application
Straightening, pre-weld heating, spot heating, annealing, forging and maintenance. Effective for materials 25–40 mm thick.
